| MODEL NO | LENGTH | GRIP SIZE | POWER (approx.) | BLADE NO Carbide Tipped |
CUTTING CAPACITY Ømm | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| WEIGHT | AIR COSU. | AIR PRSSURE | STEEL WIRE | COPPER WIRE | PIANO WIRE | CRIMP-ING | PLASTICS | |||
| SOFT | HARD | |||||||||

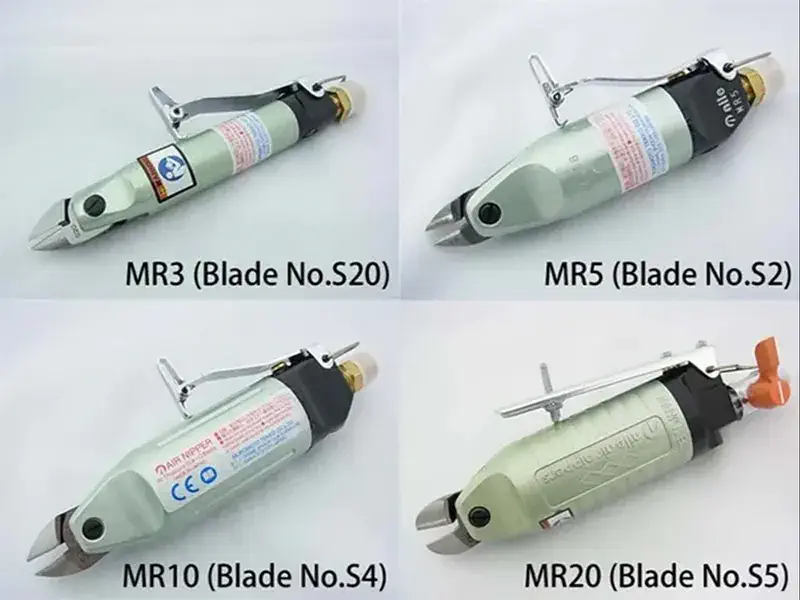

| MR3 | 112 mm | Ø20 mm | 265 N | S20, S20S, EP20,CR20 | 0.5 | 0.8 | - | - | - | - |
| Z20,Z20S,ZEP20,ZCR20 | 0.5 | 0.8 | 0.2 | - | - | - | ||||
| 90 g | 35 cm³ / stroke | 0.4~ 0.5 Mpa | ||||||||
| F10 , F10S,FD10 | - | - | - | - | 1 | - | ||||
| MR5 | 103 mm | Ø 30 mm | 390 N | S2, S2S, EP2, CR2 | 0.5 | 1 | - | - | - | - |
| Z2, Z2S, ZEP2, ZCR2 | 0.5 | 1 | 0.3 | - | - | - | ||||
| 130 g | 64cm³ / stroke | 0.4~ 0.5 Mpa | ||||||||
| F1, F1S, FD1 | - | - | - | - | 2 | - | ||||
| MR10 | 124 mm | Ø36 mm | 580 N | S4, S4S, EP4, CR4 | 1 | 1.6 | ||||
| Z4, Z4S, ZEP4, ZCR4 | 1 | 1.6 | 0.5 | |||||||
| 200 g | 116 cm³ / stroke | 0.4~0.5 Mpa | ||||||||
| F3, F3S, FD3, F3LS | - | - | - | - | 4 | 2.6 | ||||
| MR20 | 155 mm | Ø45 mm | 1.370 N | S5, S5S, P6, EP6, CR6 | 2 | 2.6 | - | - | - | - |
| Z6, Z6S, ZEP6, ZCR6 | 2 | 2.6 | 1 | - | - | - | ||||
| 340 g | 230 cm³ / stroke | 0.5~ 0.6 Mpa | ||||||||
| F5, F5S, FD5, F5LS | - | - | - | - | 7 | 5 | ||||

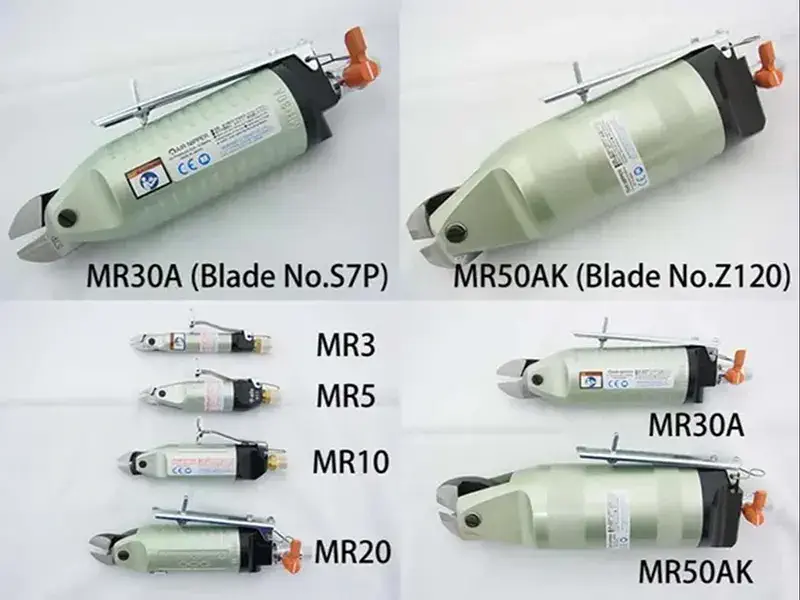

| MR30A | 191 mm | Ø56 mm | 5531 N | S7P, S7PS, P8P, EP10P, CR8P | 2.8 | 3.8 | - | - | - | - |
| Z8P, Z8PS, ZEP10P, ZCR8P | 2.8 | 3.8 | 1.2 | - | - | - | ||||
| 520 g | 584cm³ / stroke | 0.5~ 0.6 Mpa | F9P, F9PS, FD9P | - | - | - | - | 10 | 6.5 | |
| A8P, AR8P | - | - | - | 1.25/2.0 | - | - | ||||
| MR50A | 256 mm | Ø 75 mm | 4700 N | S120, S120S, P120, EP120CR120 | 4.5 | 5.5 | - | - | - | - |
| Z120, Z120S, ZEP120, ZCR120 | 4.5 | 5.5 | 1.6 | - | - | - | ||||
| 1.290 g | 1.17 cm³ / stroke | 0.5 ~ 0.6 Mpa | F120 | - | - | - | - | 11 | 8 | |
| A120, AR120 | - | - | - | 5.5 | - | - | ||||
