DC Nut Runner

Home ➤ Products ➤ Stanley Tools ➤ DC Nut Runner

DC Nut Runner

The STANLEY Assembly Technologies EB-Series tools have been engineered to combine the latest technologies with Staley’s best design features resulting in best-in-class tools. Full Line of Tools - 0.4 Nm to 2000 Nm with geometries to fit a wide range of applications

FEATURES AND BENEFITS:
  • Low Friction Gearing — in both gearbox and angle head assemblies for reduced noise and vibration for improved ergonomics.
  • High Efficiency Motor — for best-in-class Power -to –Weight ratio.
  • Modular construction - For low MTTR (mean time to repair). Common components reduce complexity and cost.
  • - Handle / lever assembly common to all handheld tools.
  • - Motor sizes
  • - Modular gear sets
  • - Angle heads

Cordless Torque Tools offering transducer-controlled battery powered tools that are ideal for Threaded fastening assembly. STANLEY delivers improved productivity and quality with performance-driven torque tool solutions for the assembly floor

FEATURES AND BENEFITS:
  • Cordless Communication via IEEE 802.11 a/b/g/n
  • - 2.4 GHz to OBE Expert (QB410 I), QBE Specialist (QB5I00), or Network Node (QB020l)
  • - 5 GHz to customer supplied remote access points.
  • IEEE 802.15.4, 2.4 GHz wireless option communication to Network Node (QB0301) Or QBE Specialist (QB5300)
  • Accurate transducer control
  • Precise, high efficiency, brushless DC motor
  • Operator aided visual and audible feedback
  • Controller INSIDE the tool
  • - Data storage of 500 fastening cycles and two traces
  • - 16 Jobs / 16 Tasks /4 Steps
  • Barcode Scanner option
  • DEWALT Battery Platform powers STANLEY Assembly Technologies cordless tool platform
COMPLETE PRODUCT LINE:
  • Pistol style
  • Pistol push-to-start
  • Angle head lever style
  • Inline lever style

QBE EXPERT CONTROLLER

BENEFITS:
  • Large Touchscreen, Colour Display and Keypad
  • Quick Set-up from the Controller Keypad, or with a PC, tablet, or smart phone
  • Alpha Toolbox, STANLEY's web-based software for programming, collecting data and performing diagnostics
  • Less training, less inventory and spare parts: STANLEY offers the same Controller platform for Cordless B-Series Battery Tools as well as Corded Handheld and Fixtured EB-Series, E-Series and EA-Series Tools
TECHNICAL FEATURES:
  • One Network Connection for Multiple Spindles
  • Operates as a Standalone Controller or as the Lead Controller of a multiple (fixtured) system
  • Manages up to 24 trailing spindles (Advanced or Nodes) or Cordless Tools
  • A maximum of 15 Cordless Connections are supported
  • An 802.11 b/gin wireless access point for B-Series Cordless Tools to connect as trailing spindles
  • Stores Trace Data for 30,000 Fastening Cycles for Corded Tools
  • 255 jobs, 99 tasks, 12 steps including smart steps and all advanced strategies
  • Includes a USB port, a plant network Ethernet port, a Spindle network Ethernet port, a Serial port, and an emulated PLC function
  • Embedded Modbus TCP
  • Fieldbus options: Profibus, Profinet, DeviceNet and Ethernet IP
  • 24V DC I/O, 8 Inputs / 8 Outputs, assignable

QBE ADVANCED CONTROLLER

BENEFITS:
  • Color Display with Keypad
  • Quick Set-up from the Controller Keypad, or with a PC through Ethernet
  • Alpha Toolbox, STANLEY‘s web-based software for programming, collecting data and performing diagnostics
  • Less training, less inventory and spare parts: STANLEY offers thesame Controller platform for Cordless B-Series Battery Tools as well as Corded Handheld and Fixtured EB-Series, E-Series and EA-Series Tools
TECHNICAL FEATURES:
  • Two-line color display and soft key keypad
  • Operates as a Standalone Controller or as part of a dual spindle system
  • The Advanced controller can control up to 2 spindles including its own (typically Nodes or Advanced controllers can be used)
  • Stores Trace Data for 30,000 Fastening Cycles
  • 255 jobs, 99 tasks, 12 steps including smart steps and all advanced strategies
  • Includes a USB port and 2 Ethernet ports, a Serial port, fieldbus options, an integrated PLC
  • 24V DC I/O, 8 Inputs / 8 Outputs, assignable

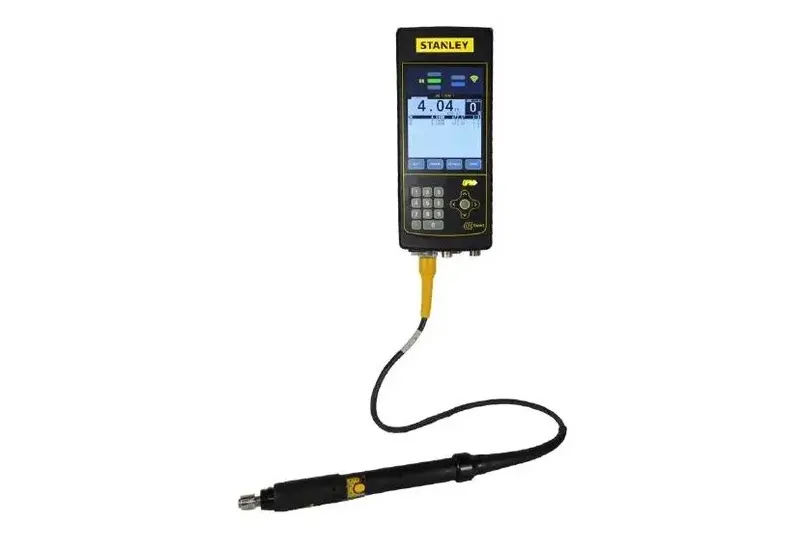

CORDER ELECTRIC NUT RUNNER

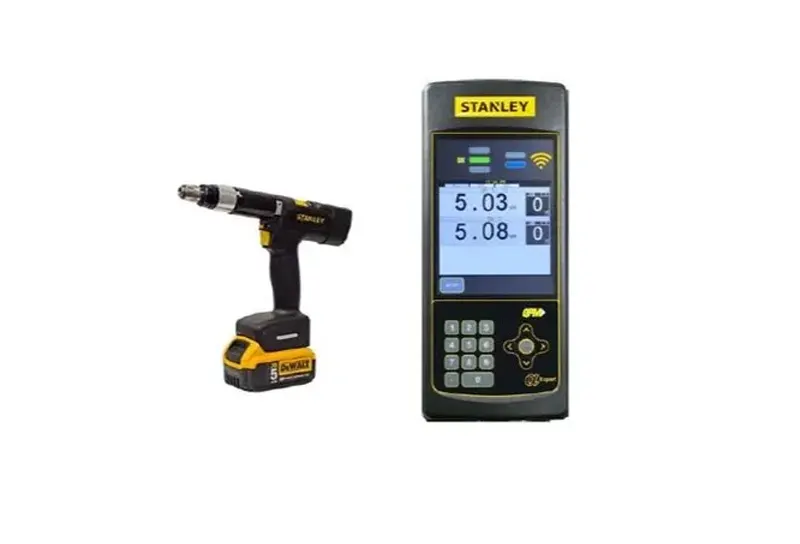

CORDLESS ELECTRIC NUT RUNNER

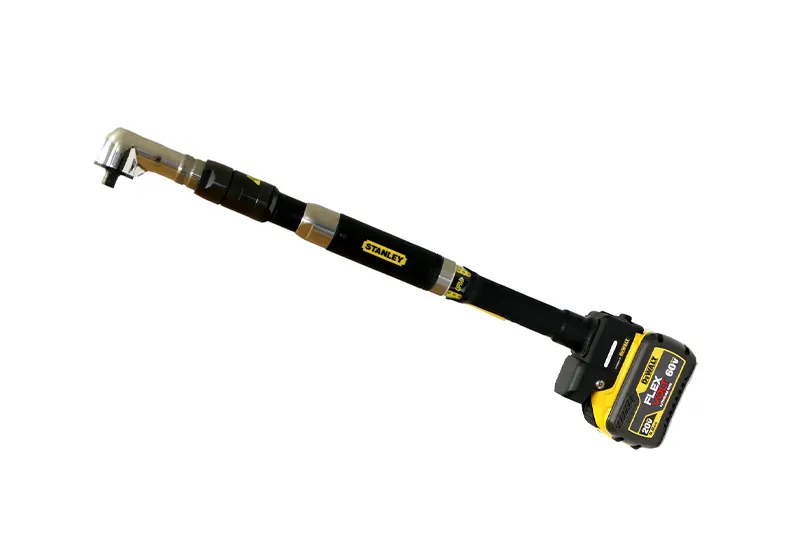

B33L-ANGLED

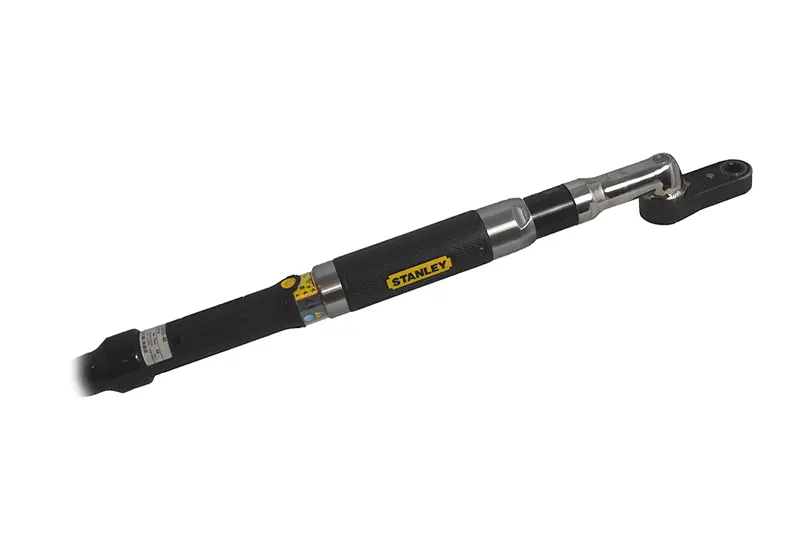

SAT-EB33LC

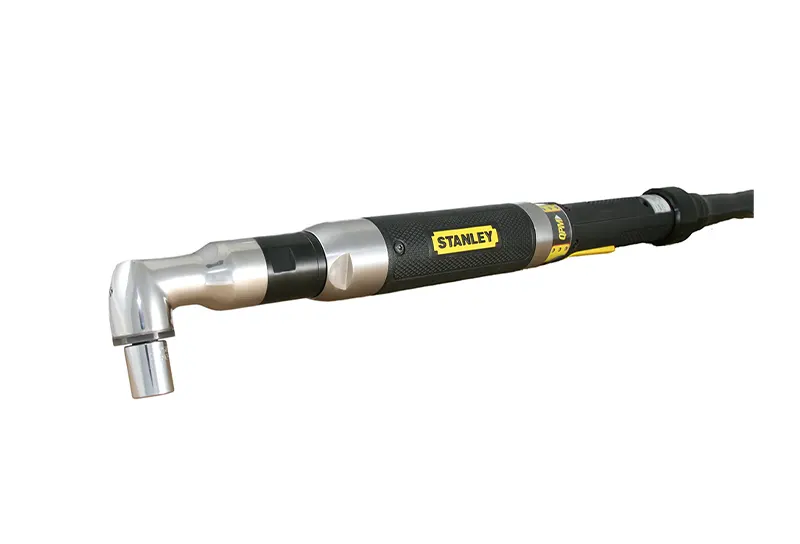

SAT-EB33LA15

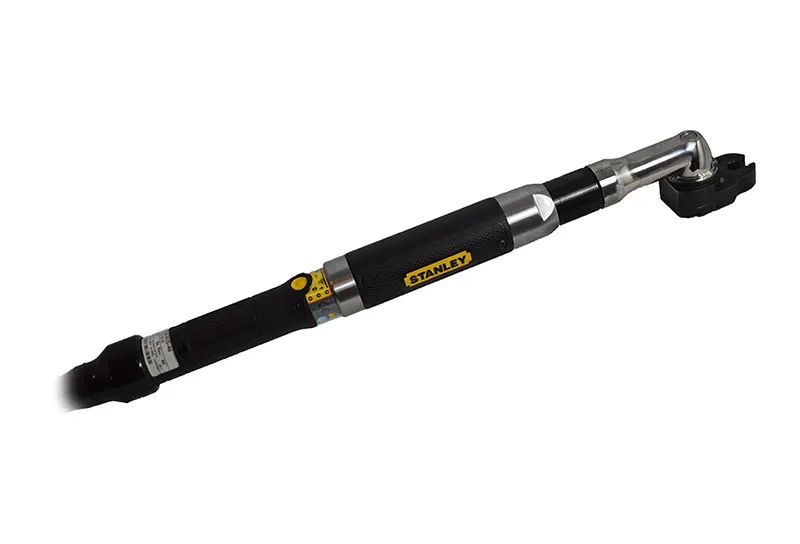

SAT-EB33L

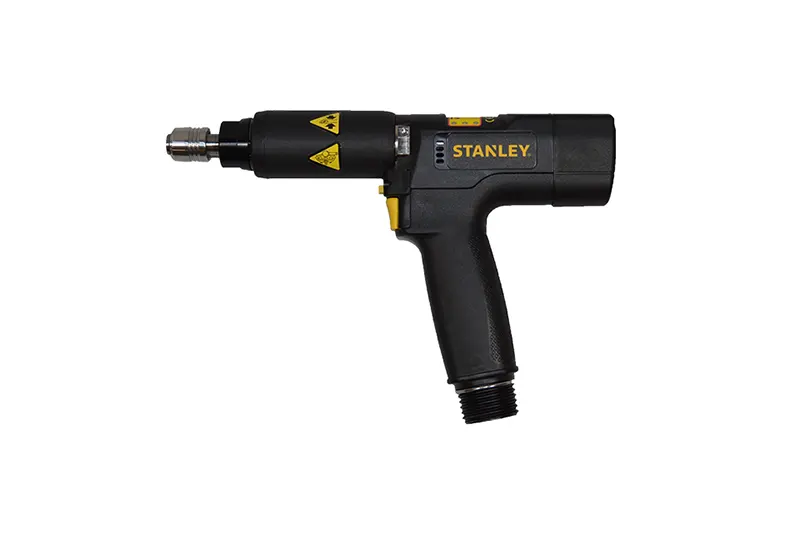

SAT-EB12PP

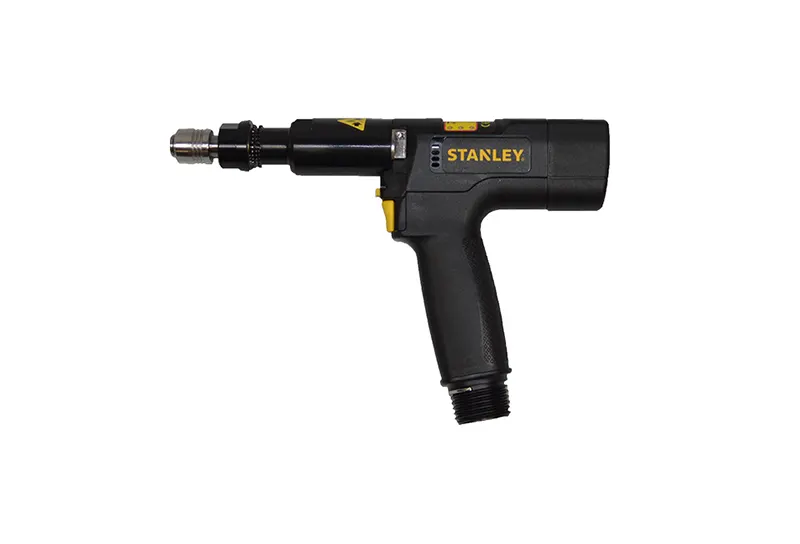

SAT-EB12PB

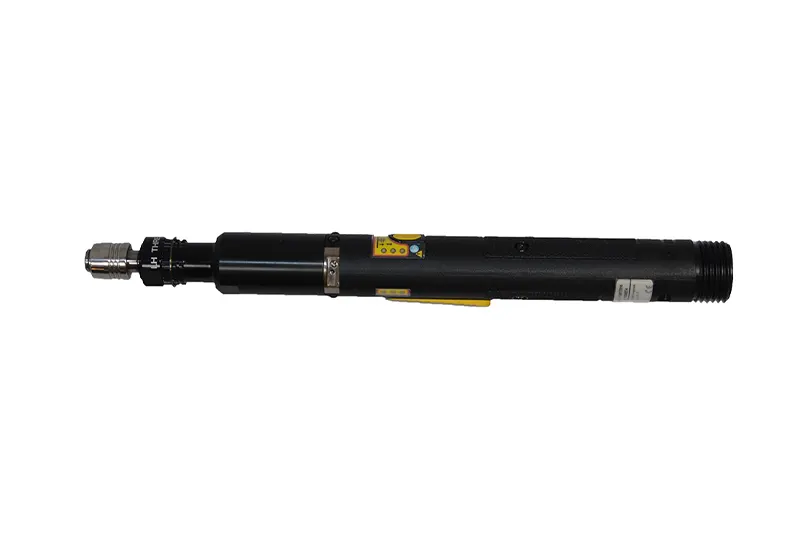

SAT-EB12LB
