Dail Type

High-accuracy dial indicating torque wrench for quality inspections
Accuracy: ±3% of reading
Easy-to-read dial with memory pointer for peak torque
Tightening complete when pointer returns to “0”
Consistent accuracy regardless of hand placement
Protective cover on dial indicator
DB25N to DB280N models have resin grips; lower range models have index finger handles
Larger torque ranges available in DBE and DBR series
Use through-hole socket for models with over 25.4 mm square drive
SI and metric units (except specified models) comply with ISO 6789:2017 from January 2022
Updated calibration certificates and model names; refer to discontinued models for comparison
American unit products do not comply with ISO 6789:2017
Internationally suitable, including EU, compliant with ISO 6789 Type I Class B
Includes Certificate of Calibration

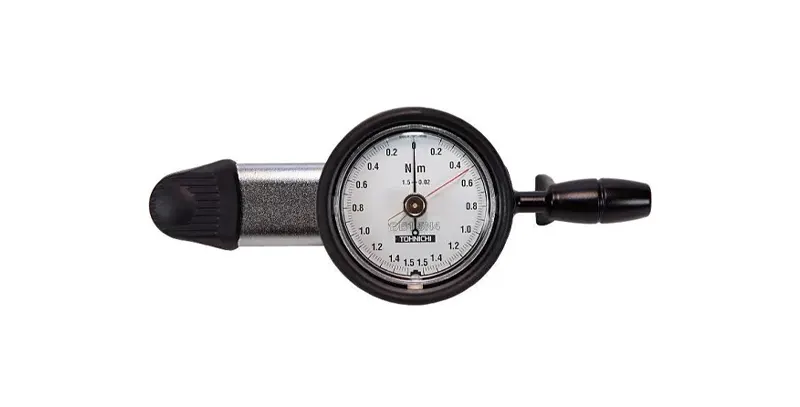

DB1.5N4-S

Specifications
Model	DB1.5N4-S
Torque Range	0.2-1.5Nm/kN-m
Grade	0.02
Over All Length	205mm
Square Drive	6.35 mm
Weight	0.4 kg

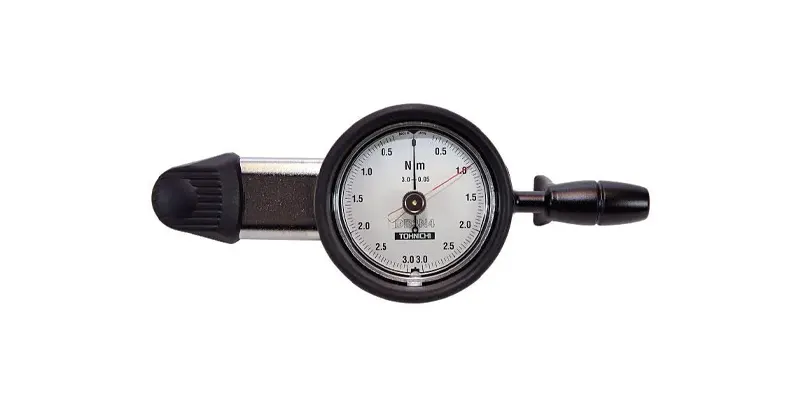

DB3N4-S

Specifications
Model	DB3N4-S
Torque Range	0.3-3 Nm/kN-m
Grade	0.05
Over All Length	205mm
Square Drive	6.35 mm
Weight	0.4 kg

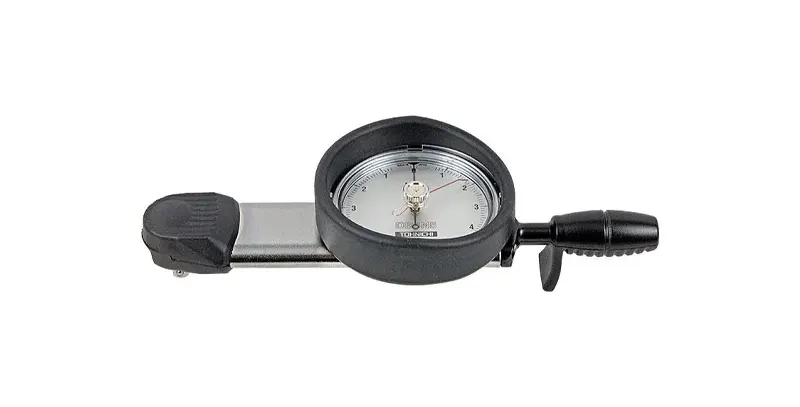

DB6N4-S

Specifications
Model	DB6N4-S
Torque Range	0.6-6 Nm/kN-m
Grade	0.1
Over All Length	205mm
Square Drive	6.35 mm
Weight	0.4 kg

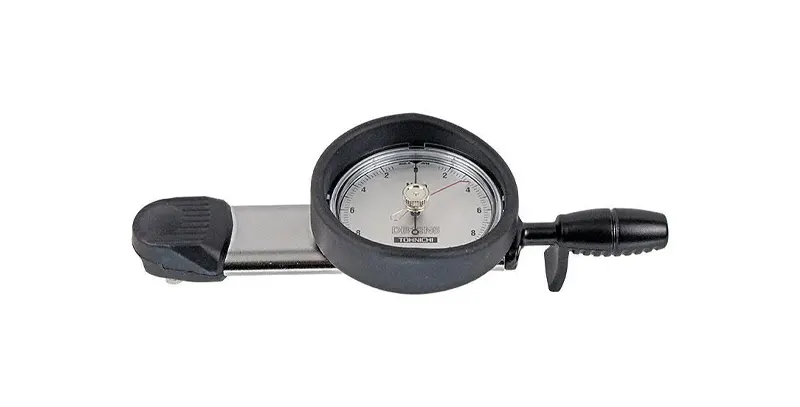

DB12N4-S

Specifications
Model	DB12N4-S
Torque Range	01-12 Nm/kN-m
Grade	0.2
Over All Length	205mm
Square Drive	6.35 mm
Weight	0.4 kg

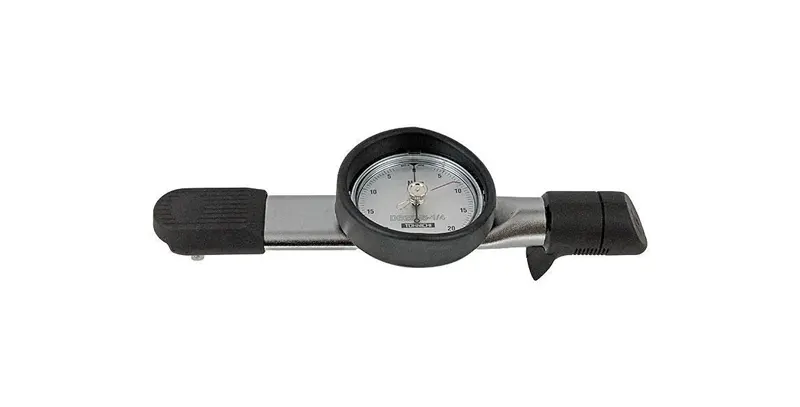

DB25N-1/4-S

Specifications
Model	DB25N-1/4-S
Torque Range	3-25 Nm/kN-m
Grade	0.5
Over All Length	245 mm
Square Drive	6.35 mm
Weight	0.6 kg

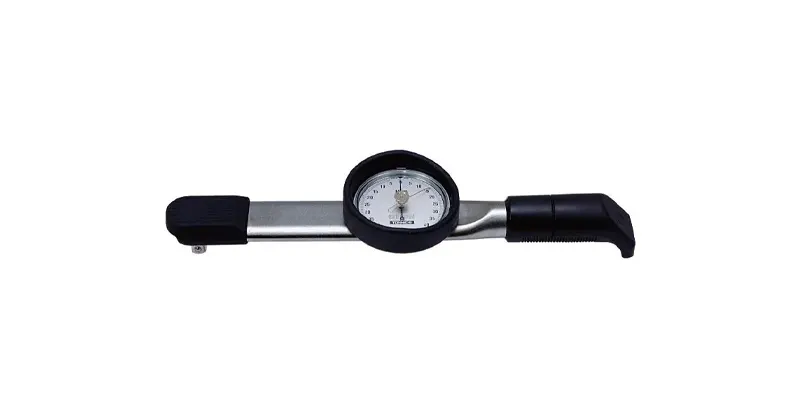

DB50N-S

Specifications
Model	DB50N-S
Torque Range	5-50 Nm/kN-m
Grade	0.5
Over All Length	320 mm
Square Drive	9.5 mm
Weight	0.6 kg

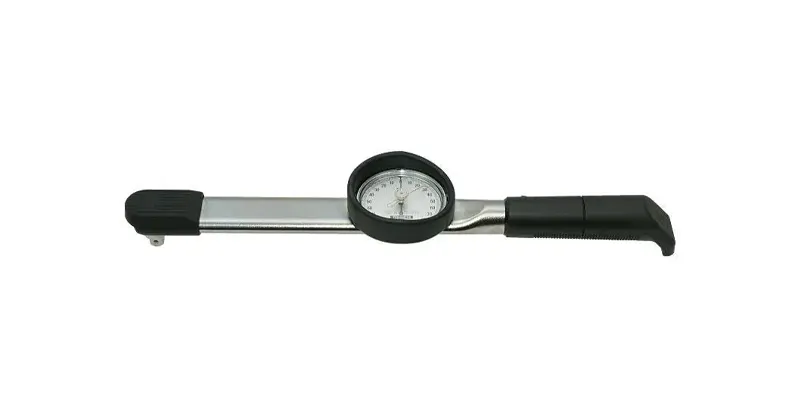

DB100N-3/8-S

Specifications
Model	DB100N-3/8-S
Torque Range	10-100 Nm/kN-m
Grade	1
Over All Length	400 mm
Square Drive	9.5 mm
Weight	0.7 kg

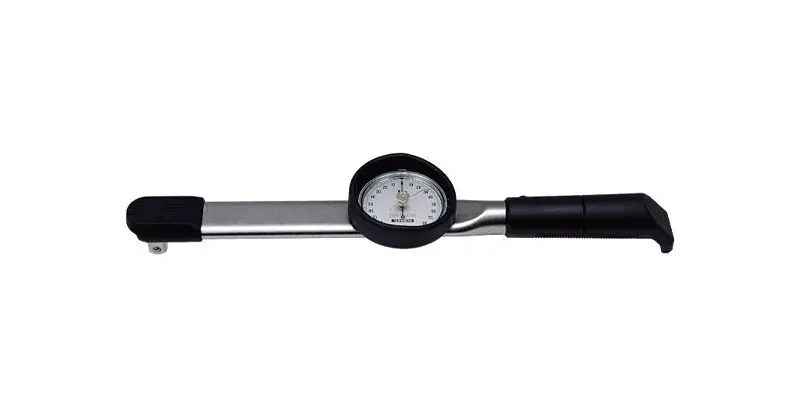

DB100N-S

Specifications
Model	DB100N-S
Torque Range	10-100 Nm/kN-m
Grade	1
Over All Length	400 mm
Square Drive	12.7 mm
Weight	0.7 kg

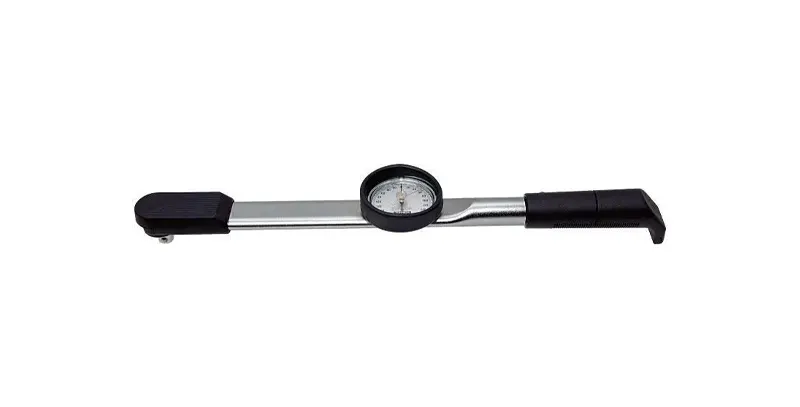

DB200N-S

Specifications
Model	DB200N-S
Torque Range	20-200 Nm/kN-m
Grade	2
Over All Length	500 mm
Square Drive	12.7 mm
Weight	1 kg

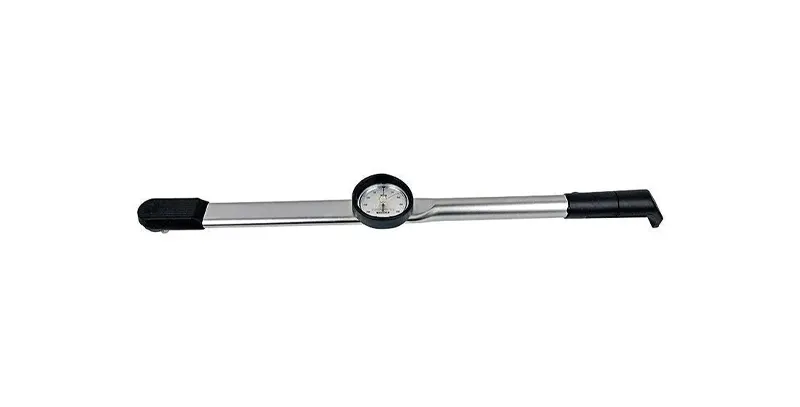

DB280N-1/2-S

Specifications
Model	DB280N-1/2-S
Torque Range	30-280 Nm/kN-m
Grade	5
Over All Length	690 mm
Square Drive	12.7 mm
Weight	1.65 kg

SI MODEL	TORQUE RANGE (N-m / KN-m)		OVER ALL LENGTH (mm)	SQUARE DRIVE (mm)	WEIGHT (kg)
SI MODEL	Min -Max	Grade	OVER ALL LENGTH (mm)	SQUARE DRIVE (mm)	WEIGHT (kg)
DB25N-S	3-25	0.5	245	9.5	0.6
DB280N-S	30-280	5	690	19	1.65
DB420N-S	40-420		890		2.5
DBE560N-S	50-560		1100		4
DBE700N-S	70-700	10	1260		5.5
DBE850N-S	100-850		1360	25.4	6.1
DBE1000N-S	100-1000		1490		6.4
DBE1400N-S	200-1400	20	1740		8.6
DBE2100N-S	200-2100	20	2140		12.8
DBE2800N-S	300-2800	50	2380	38.1	16.8
DBR4500N-S	0.5-4.5kN-m	0.05 kN-m	1285	38.1	26.5
DBR6000N-S	0.6-6	0.1	1585	44.5	27.5
