| Specifications | |
|---|---|

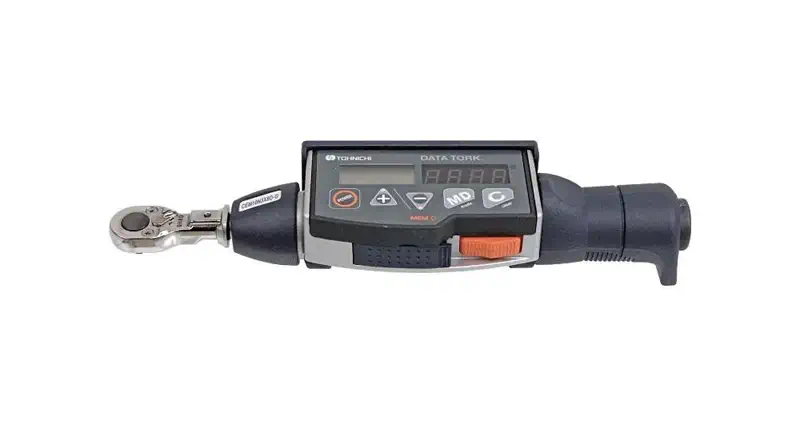

| Model | CEM10N3X8D-G |
| Torque Range (Min - Max) |
02-10 nm |
| Torque Range (1 digit) | 0.01 knm |
| Hand Force | 48.1 N |
| Overall length | 212 mm |
| Weight | 0.46 kg |
| Specifications | |
|---|---|

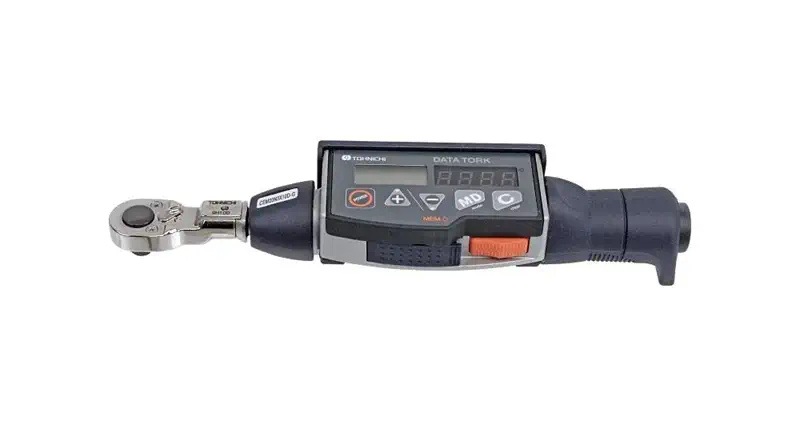

| Model | CEM20N3X10D |
| Torque Range (Min - Max) |
04-20 nm |
| Torque Range (1 digit) | 0.02 knm |
| Hand Force | 92.2 N |
| Overall length | 214 mm |
| Weight | 0.47 kg |
| Specifications | |
|---|---|

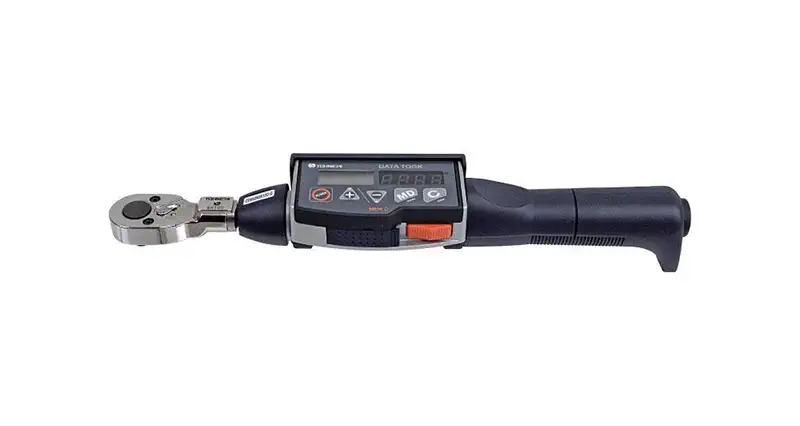

| Model | CEM50N3x12D-G |
| Torque Range (Min - Max) |
10-50 nm |
| Torque Range (1 digit) | 0.05 knm |
| Hand Force | 196.9 N |
| Overall length | 282 mm |
| Weight | 0.58 kg |
| Specifications | |
|---|---|
| Model | CEM100N3x15D-G |
| Torque Range (Min - Max) |
20-100 nm |
| Torque Range (1 digit) | 0.1 knm |
| Hand Force | 275.5 N |
| Overall length | 384 mm |
| Weight | 0.63 kg |
| Specifications | |
|---|---|

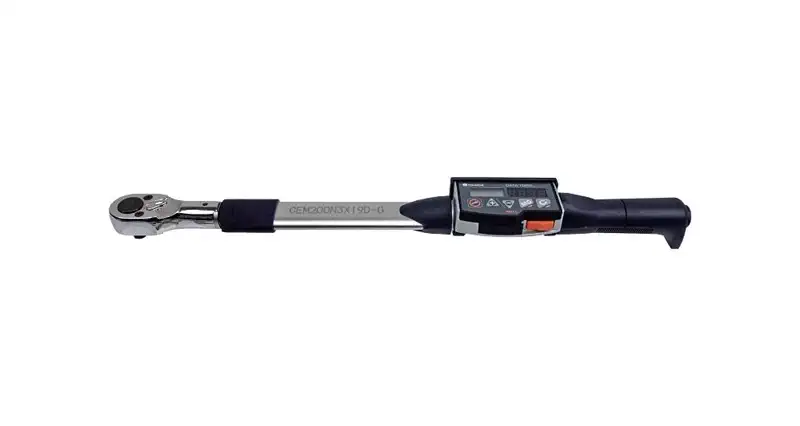

| Model | CEM200N3x19D-G |
| Torque Range (Min - Max) |
40-200 nm |
| Torque Range (1 digit) | 0.2 knm |
| Hand Force | 428.3 N |
| Overall length | 475 mm |
| Weight | 0.78 kg |
| Specifications | |
|---|---|

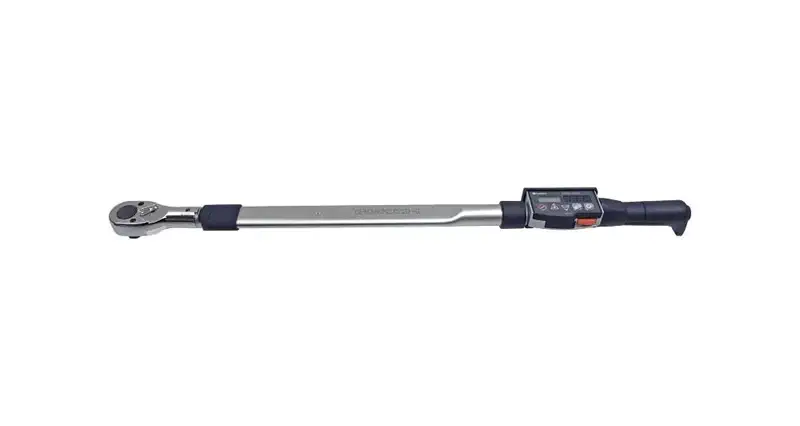

| Model | CEM360N3x22D-G |
| Torque Range (Min - Max) |
72-360 nm |
| Torque Range (1 digit) | 0.4 knm |
| Hand Force | 498.6 N |
| Overall length | 713 mm |
| Weight | 1.13 kg |
| Specifications | |
|---|---|

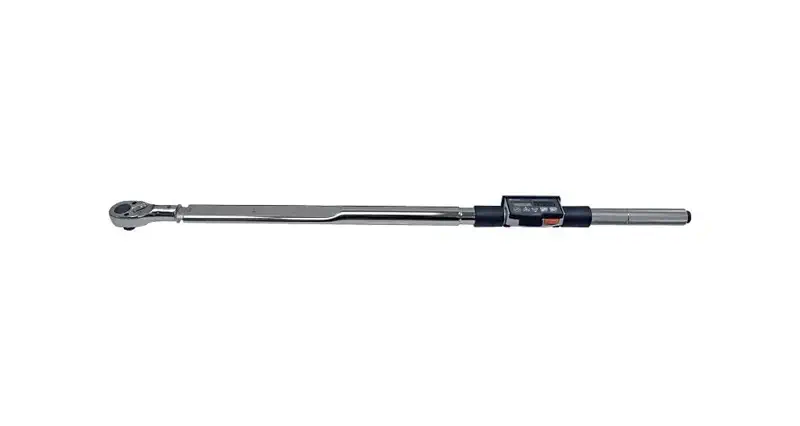

| Model | CEM500N3x22D-G |
| Torque Range (Min - Max) |
100-500 nm |
| Torque Range (1 digit) | 0.5 knm |
| Hand Force | 549.5 N |
| Overall length | 949 mm |
| Weight | 4 kg |
