Ratchet Type

QL / QLE Adjustable Click Type Torque Wrench Overview

  • Adjustable Torque:   Easily set using the adjusting knob and scale, suitable for various applications.
  • Clear Indication:   Audible and tactile "click" signals when the set torque is reached.
  • Ratchet Head:   24 teeth with a 15-degree operating range for use in tight spaces.
  • Accuracy:   ±3% of indicated value.
  • Larger Models:   QLE550N2 to QLE2800N2 have an extension handle and built-in torque adjustment handle.
  • Smaller Models:   QL2N to QL25N5 feature a yellow and black grip with a clear high-contrast scale and pull-and-twist set knob.
  • Mid-Range Models:   QL50N to QL280N have a black resin grip with a wing nut locker.
  • QL420N Model:   Comes with a knurled metal handle.
  • Special Models:   QL-MH models with metal handles for secure grip in oily environments.
  • Customization Options:   Color caps, protective head covers, and storage cases.
  • International Use:   Compliant with ISO 6789 Type II Class A and suitable for EU.

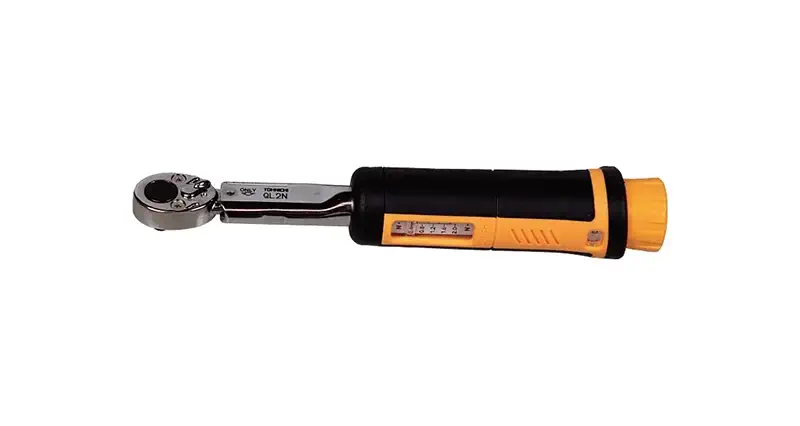

QL2N

Specifications
Model QL2N
Torque Range
(Min - Max)		 0.4-2 nm
Torque Range (Grade) 0.02 knm
Overall length 194 mm
Square Drive 6.35 mm
Weight 0.27 kg

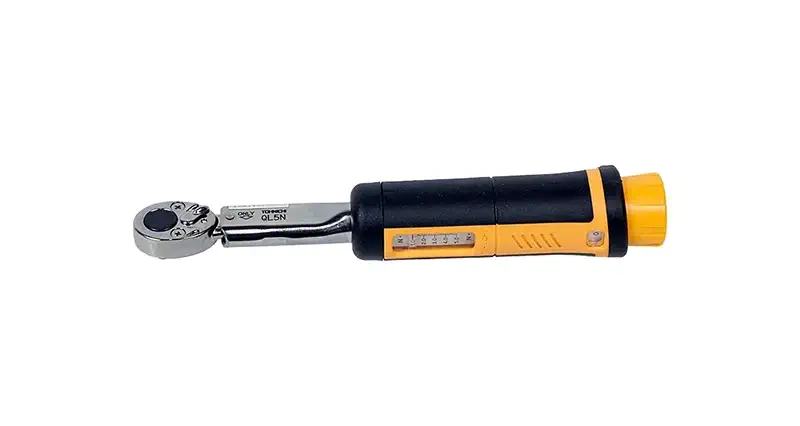

QL5N

Specifications
Model QL5N
Torque Range
(Min - Max)		 01-05 nm
Torque Range (Grade) 0.05 knm
Overall length 194 mm
Square Drive 6.35 mm
Weight 0.27 kg

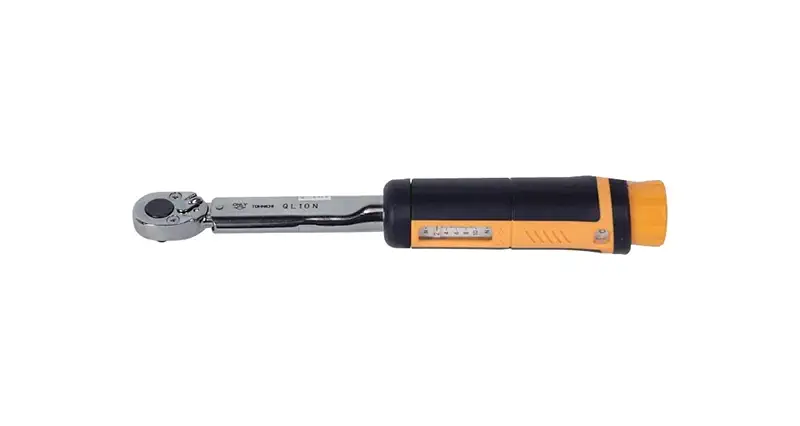

QL10N

Specifications
Model QL10N
Torque Range
(Min - Max)		 02-10 nm
Torque Range (Grade) 0.1 knm
Overall length 219 mm
Square Drive 6.35 mm
Weight 0.29 kg

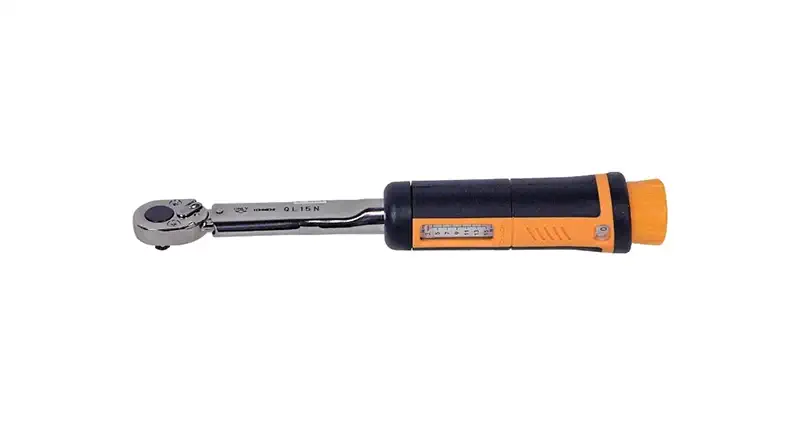

QL15N

Specifications
Model Ql15N
Torque Range
(Min - Max)		 03-15 nm
Torque Range (Grade) 0.2 knm
Overall length 219 mm
Square Drive 6.35 mm
Weight 0.29 kg

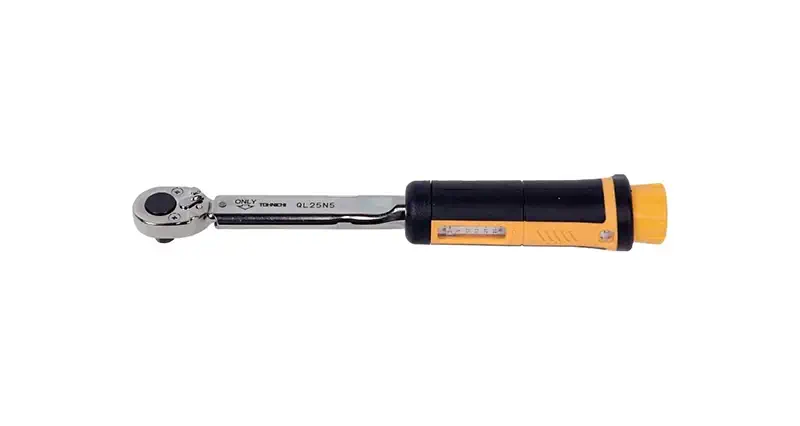

QL25N

Specifications
Model QL25N
Torque Range
(Min - Max)		 05-25 nm
Torque Range (Grade) 0.2 knm
Overall length 237 mm
Square Drive 9.53 mm
Weight 0.45 kg

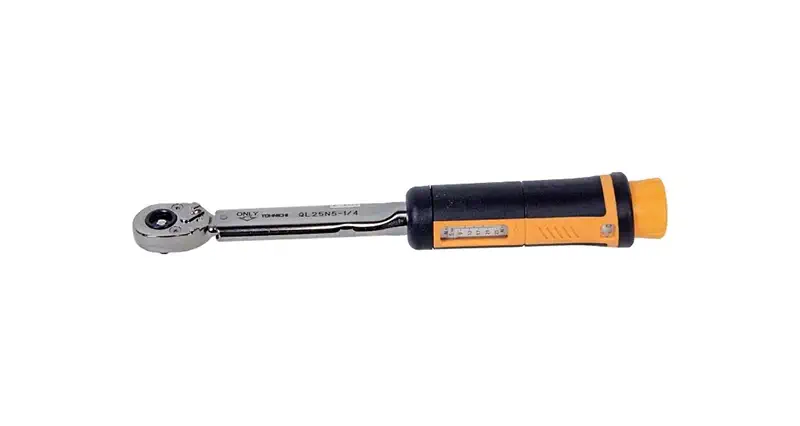

QL25N-1/4

Specifications
Model QL25N-1/4
Torque Range
(Min - Max)		 05-25 nm
Torque Range (Grade) 0.2 knm
Overall length 237 mm
Square Drive 6.35 mm
Weight 0.45 kg

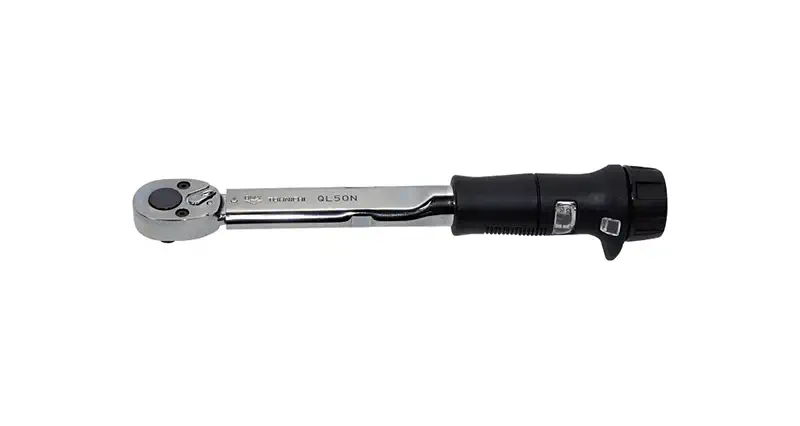

QL50N

Specifications
Model QL50N
Torque Range
(Min - Max)		 10-50 nm
Torque Range (Grade) 0.5 knm
Overall length 260 mm
Square Drive 9.53 mm
Weight 0.45 kg

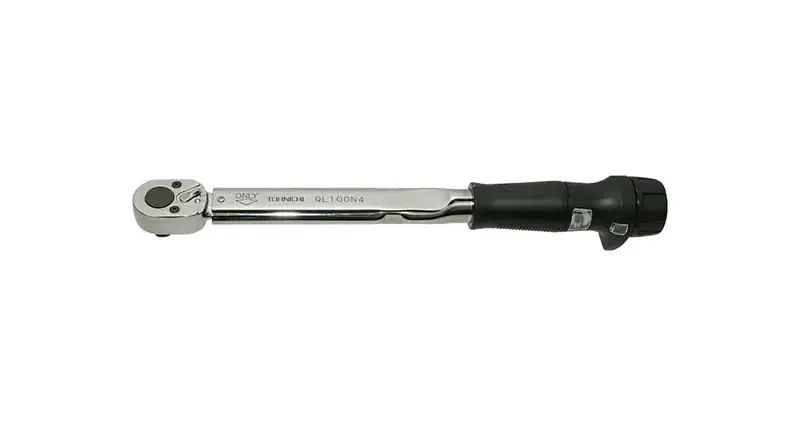

QL100N4

Specifications
Model QL100N4
Torque Range
(Min - Max)		 20-100 nm
Torque Range (Grade) 1 knm
Overall length 335 mm
Square Drive 12.7 mm
Weight 0.69 kg

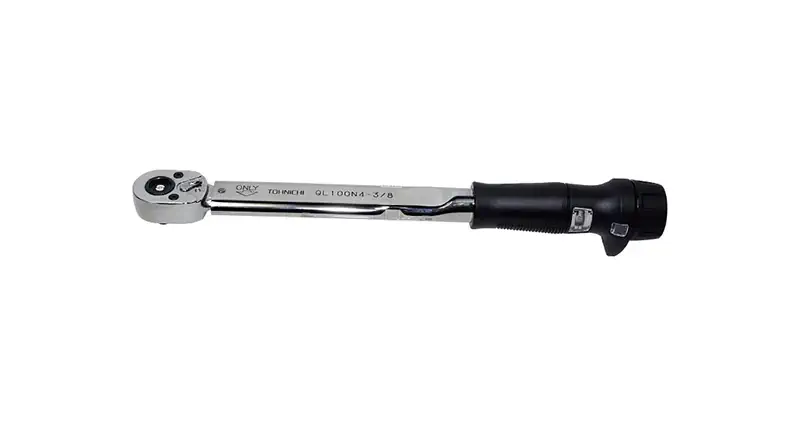

QL100N4-3/8

Specifications
Model QL100N4-3/8
Torque Range
(Min - Max)		 20-100 nm
Torque Range (Grade) 1 knm
Overall length 335 mm
Square Drive 9.53 mm
Weight 0.69 kg

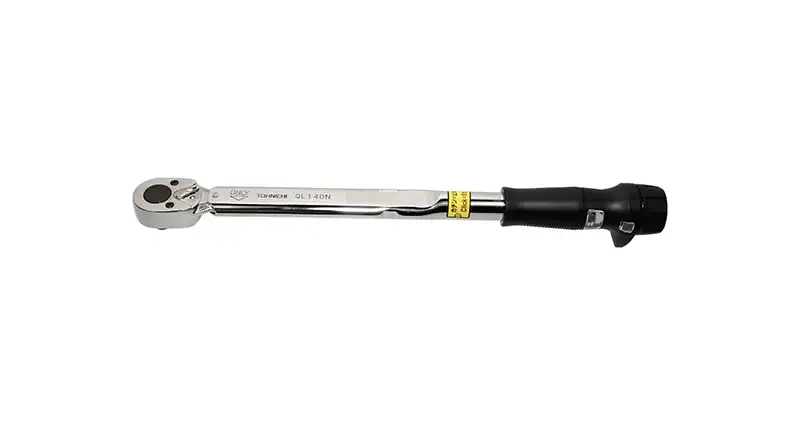

QL140N

Specifications
Model QL140N
Torque Range
(Min - Max)		 30-140 nm
Torque Range (Grade) 1 knm
Overall length 400 mm
Square Drive 12.7 mm
Weight 0.88 kg

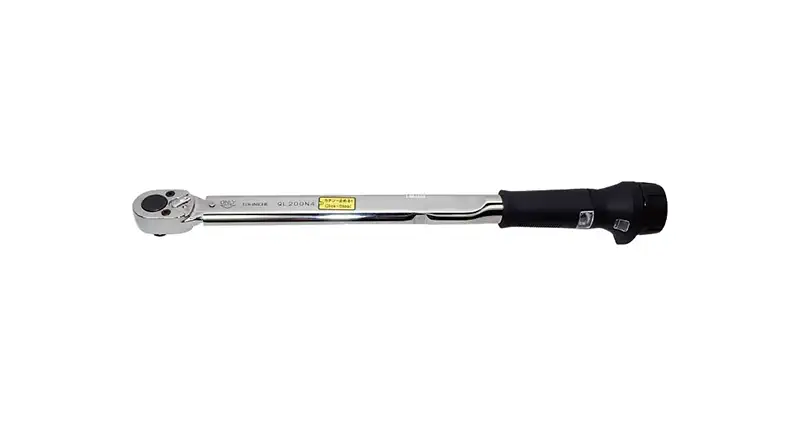

QL200N4

Specifications
Model QL200N4
Torque Range
(Min - Max)		 40-200 nm
Torque Range (Grade) 2 knm
Overall length 490 mm
Square Drive 12.7 mm
Weight 1.4 kg

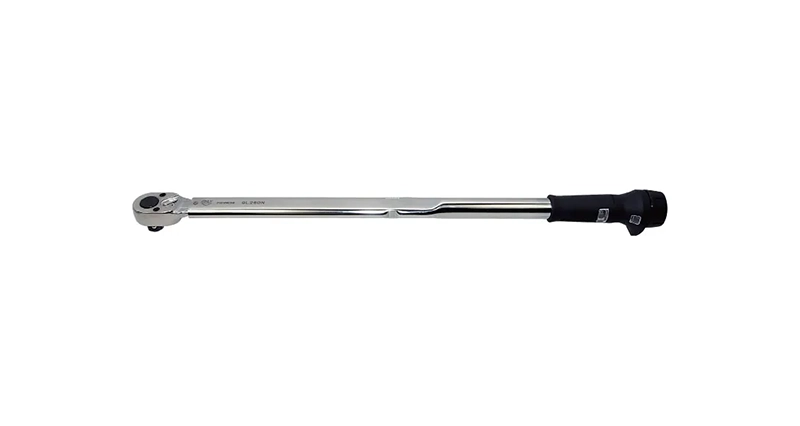

QL280N

Specifications
Model QL280N
Torque Range
(Min - Max)		 40-280 nm
Torque Range (Grade) 2 knm
Overall length 695 mm
Square Drive 19.05 mm
Weight 2.0 kg

QL280N4-1/2

Specifications
Model QL280N4-1/2
Torque Range
(Min - Max)		 40-280 nm
Torque Range (Grade) 2 knm
Overall length 695 mm
Square Drive 12.7 mm
Weight 2.0 kg

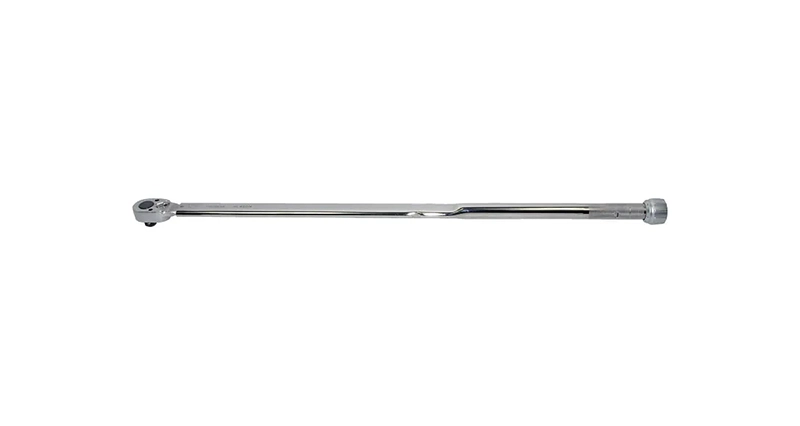

QL420N

Specifications
Model QL420N
Torque Range
(Min - Max)		 60-420 nm
Torque Range (Grade) 2 knm
Overall length 995 mm
Square Drive 19.05 mm
Weight 3.4 kg

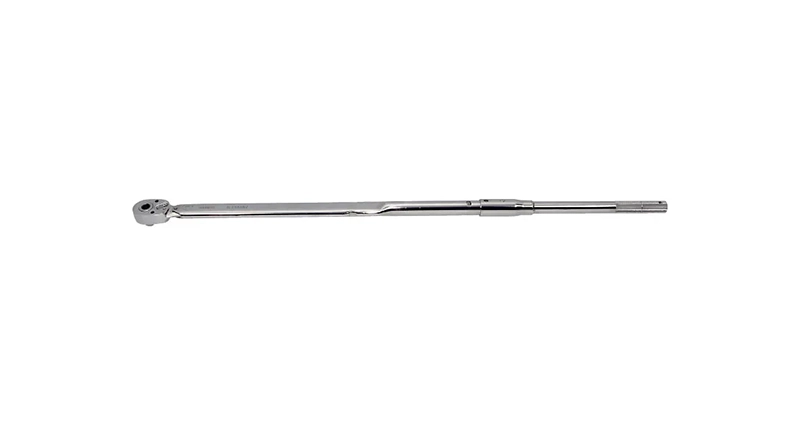

QLE550N

Specifications
Model QLE550N
Torque Range
(Min - Max)		 100-550 nm
Torque Range (Grade) 5 knm
Overall length 1189 mm
Square Drive 19.05 mm
Weight 4.3 kg

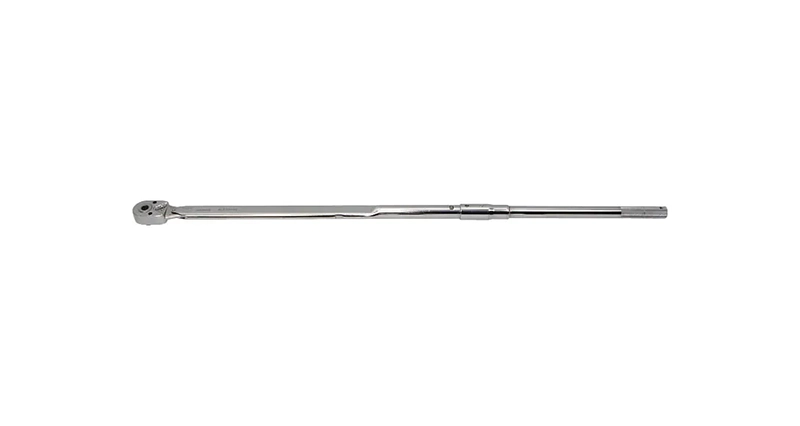

QLE750N

Specifications
Model QLE750N
Torque Range
(Min - Max)		 100-750 nm
Torque Range (Grade) 5 knm
Overall length 1342 mm
Square Drive 19.05 mm
Weight 5.6 kg

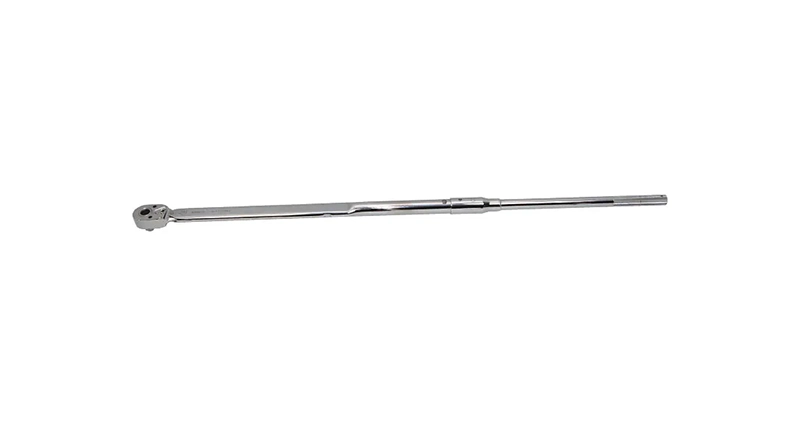

QLE1000N

Specifications
Model QLE1000N
Torque Range
(Min - Max)		 100-1000 nm
Torque Range (Grade) 5 knm
Overall length 1515 mm
Square Drive 25.4 mm
Weight 7.7 kg

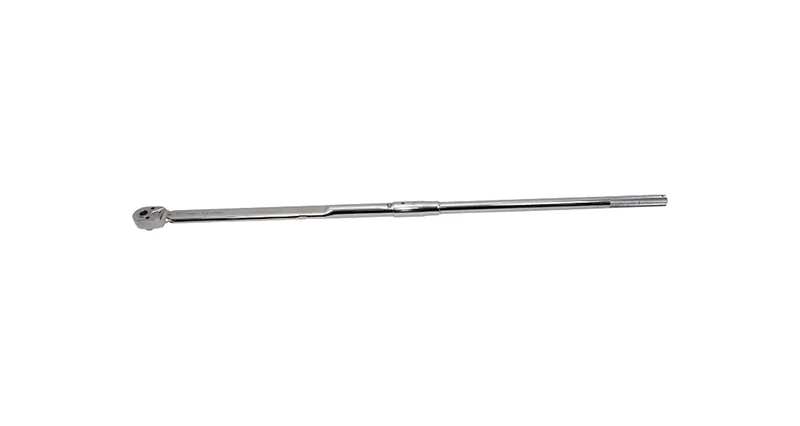

QLE1400N

Specifications
Model QLE1400N
Torque Range
(Min - Max)		 200-1400 nm
Torque Range (Grade) 10 knm
Overall length 1787 mm
Square Drive 25.4 mm
Weight 11.1 kg

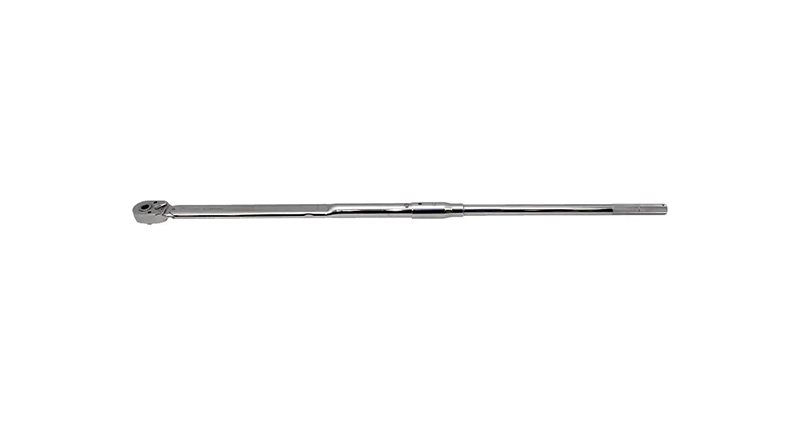

QLE2100N

Specifications
Model QLE2100N
Torque Range
(Min - Max)		 500-2100 nm
Torque Range (Grade) 20 knm
Overall length 1895 mm
Square Drive 25.4 mm
Weight 14.6 kg

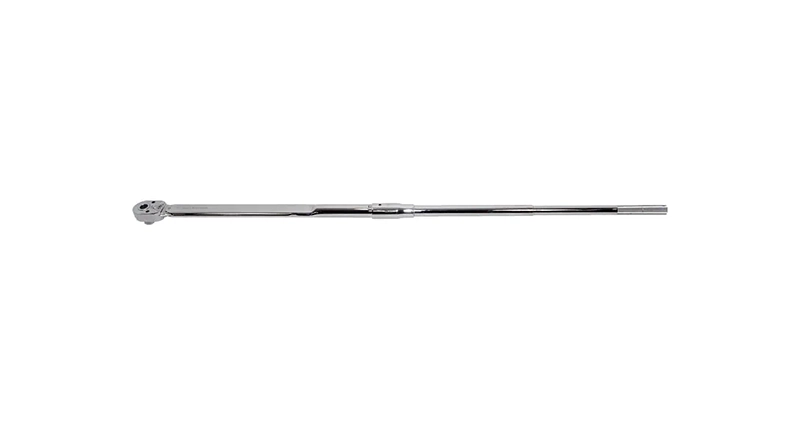

QLE2800N

Specifications
Model QLE2800N
Torque Range
(Min - Max)		 800-2800 nm
Torque Range (Grade) 20 knm
Overall length 2405 mm
Square Drive 38.1 mm
Weight 23.7 kg
