Slip Type

QSPCA Preset Click Type Torque Wrench Overview

  • Slip Type Mechanism: Once the preset torque is reached, the wrench prevents over-torque by slipping, even if additional force is applied.
  • Preset Torque Setting: The torque setting can only be adjusted using a special tool (sold separately), ensuring the operator cannot mistakenly change the torque setting.
  • International Compatibility: Suitable for use in various regions, including the EU.
  • ISO 6789 Compliance: Adheres to ISO 6789 Type II Class B calibration procedures.
  • Electrostatic Protection: Meets the IEC 61340-5-1:2007 standard, protecting electronic devices from electrostatic discharge.

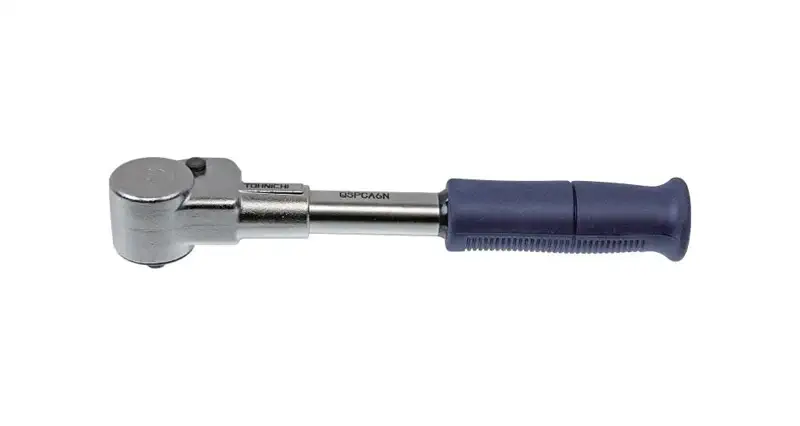

QSPCA6N

Specifications
Model QSPCA6N
Torque Range 02-06 nm
Overall Length 197 mm
Sq. Drive 6.35 mm
Weight 0.33 kg
Accuracy ±6 %

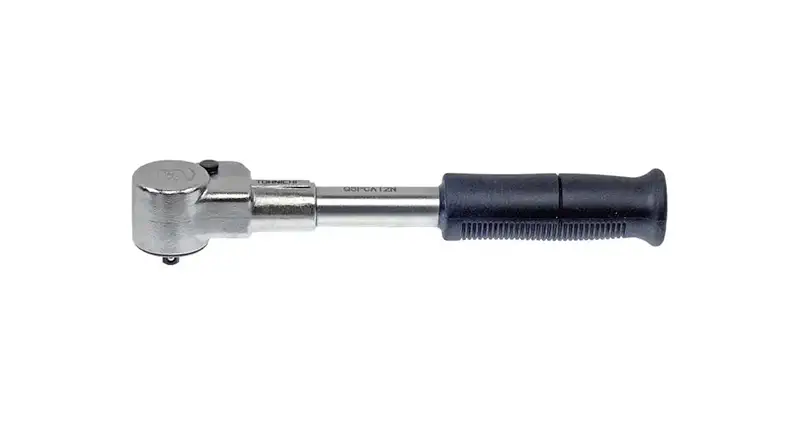

QSPCA12N

Specifications
Model QSPCA12N
Torque Range 04-10 nm
Overall Length 197 mm
Sq. Drive 6.35 mm
Weight 0.33 kg
Accuracy ±4 %

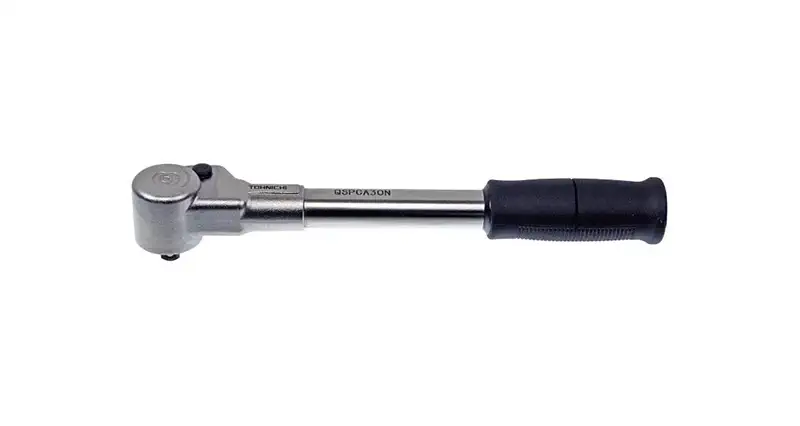

QSPCA30CN

Specifications
Model QSPCA30CN
Torque Range 10-30 nm
Overall Length 267 mm
Sq. Drive 9.53 mm
Weight 0.64 kg
Accuracy ±4 %

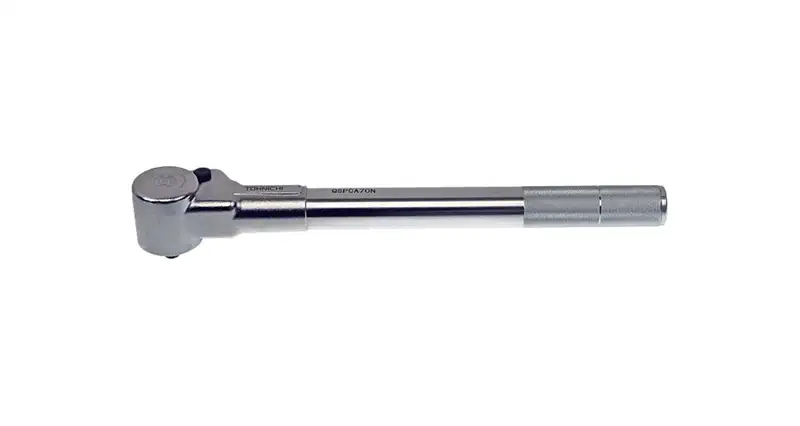

QSPCA70N

Specifications
Model QSPCA70N
Torque Range 20-70 nm
Overall Length 346 mm
Sq. Drive 9.53 mm
Weight 1.24 kg
Accuracy ±4 %

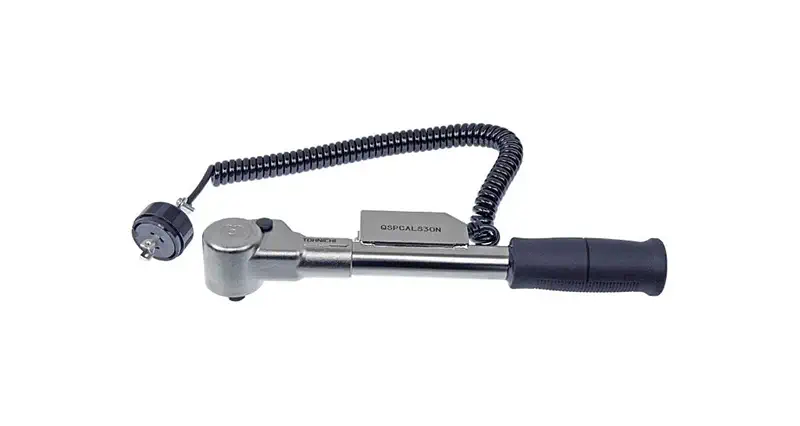

QSPCALS30N

Specifications
Model QSPCALS30N
Torque Range 10-30 nm
Overall Length 267 mm
Sq. Drive 9.53 mm
Weight 0.81 kg
Accuracy ±4 %

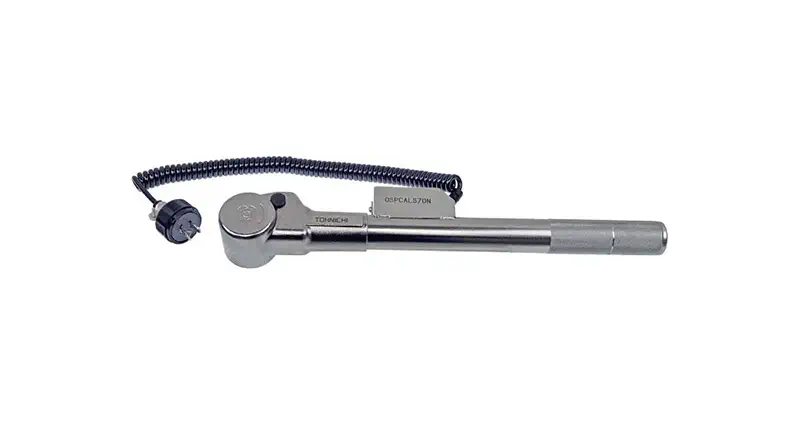

QSPCALS70N

Specifications
Model QSPCALS70N
Torque Range 20-70 nm
Overall Length 346 mm
Sq. Drive 9.53 mm
Weight 1.41 kg
Accuracy ±4 %

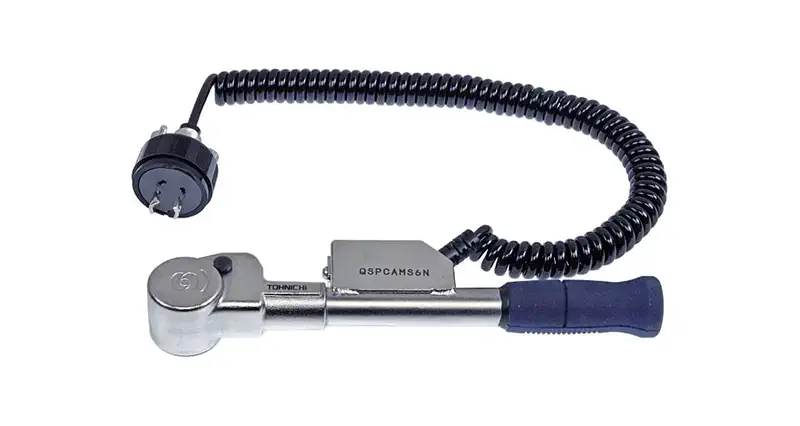

QSPCAMS6N

Specifications
Model QSPCAMS6N
Torque Range 02-06 nm
Overall Length 197 mm
Sq. Drive 6.35 mm
Weight 0.45 kg
Accuracy ±6 %

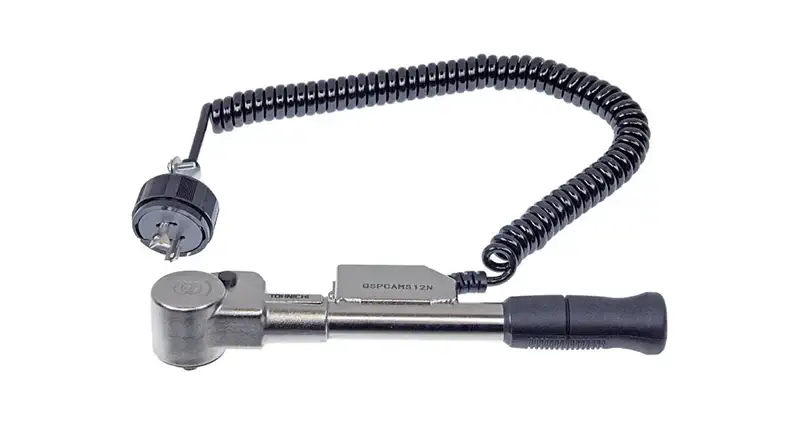

QSPCAMS12N

Specifications
Model QSPCAMS12N
Torque Range 04-12 nm
Overall Length 197 mm
Sq. Drive 6.35 mm
Weight 0.45 kg
Accuracy ±4 %
