| Model | Capacity (Nominal Bolt Size) | Torque Range | Free Speed (Approx.rpm) | Overall Length less Socket or Bit (about) | Weight less socket or Bit (about) | From Centre to Outside (about) | Square. Drive or Hex. Drive | Average Air consumption | Code | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.4~0.5MPa | 0.5~0.6MPa | |||||||||||||||||||
| mm | in | Nm | ft-Ibs | Nm | ft-Ibs | 0.4 MPa | 0.5 MPa | 0.6 MPa | mm | in | kg | Ib | mm | in | mm | in | m³/min | ft³/min | ||

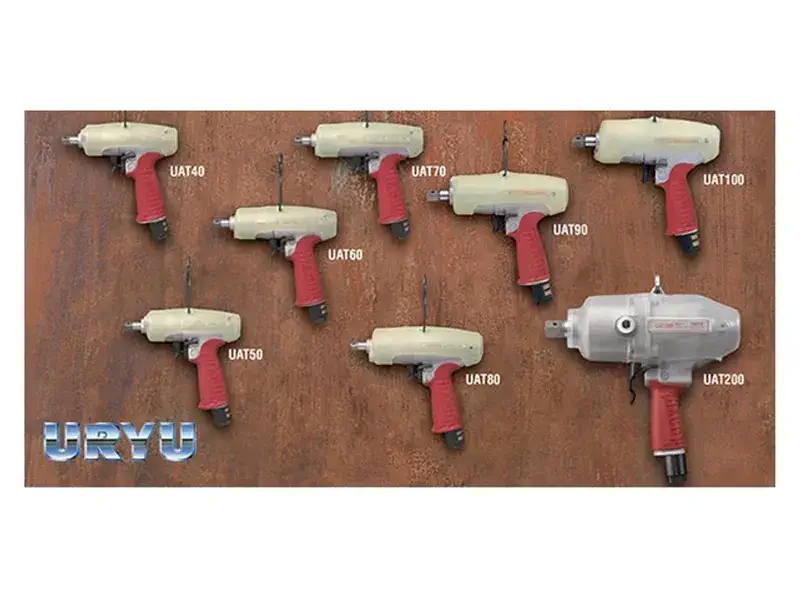

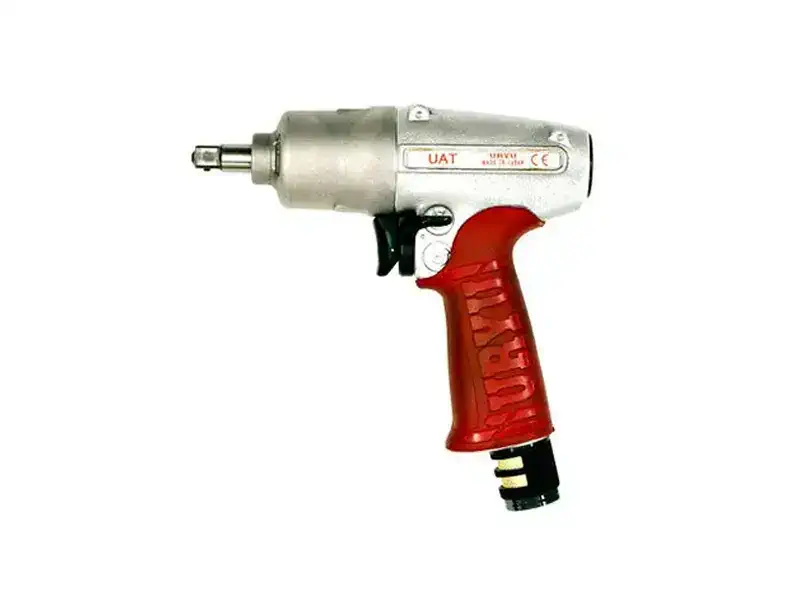

| UAT30D | 4-5 | NO.8 - NO.10 | 2.5-5.5 | 1.85-4.07 | 2.5-5.5 | 1.85-4.07 | 3600 | 3800 | 4200 | 165 | 6 1/2 | 0.88 | 1.94 | 23.5 | 15/16 | 6.35 | 1/4 | 0.30 | 10.5 | 18A02 |
| UAT40 | 5 | NO.10 | 4.5-8.0 | 3.3-5.9 | 4.5-8.0 | 3.3-5.9 | 3300 | 3600 | 3800 | 162 | 6 3/8 | 0.92 | 2.0 | 24.5 | 31/32 | 9.5 | 3/8 | 0.25 | 8.8 | 18A42 |
| UAT40D | 5 | NO.10 | 4.5-8.0 | 3.3-5.9 | 4.5-8.0 | 3.3-5.9 | 3300 | 3600 | 3800 | 165 | 6 1/2 | 0.92 | 2.0 | 24.5 | 31/32 | 6.35 | 1/4 | 0.25 | 8.8 | 18A62 |
| UAT50 | 6-8 | 1/4-5/16 | - | - | 7.0-15.5 | 5.2-11.5 | - | 4400 | 4600 | 162 | 6 3/8 | 0.92 | 2.0 | 24.5 | 31/32 | 9.5 | 3/8 | 0.25 | 8.8 | 18B22 |
| UAT50D | 6-8 | 1/4-5/16 | - | - | 7.0-15.5 | 5.2-11.5 | - | 4400 | 4600 | 162 | 6 1/8 | 0.92 | 2.0 | 24.5 | 31/32 | 6.35 | 1/4 | 0.25 | 8.8 | 18B52 |
| UAT60 | 8 | 5/16 | - | - | 15.0-32.0 | 11.1-23.7 | - | 6300 | 6700 | 174 | 6 27/32 | 0.95 | 2.1 | 24.5 | 31/32 | 9.5 | 3/8 | 0.35 | 12.3 | 18C82 |
| UAT60D | 8 | 5/16 | - | - | 15.0-32.0 | 11.1-23.7 | - | 6300 | 6700 | 177 | 6 31/32 | 0.95 | 2.1 | 24.5 | 31/32 | 6.35 | 1/4 | 0.35 | 12.3 | 18D12 |
| UAT70 | 8-10 | 5/16-3/8 | - | - | 30.0-55.0 | 22.2-40.7 | - | 5700 | 6000 | 180 | 7 3/32 | 1.05 | 2.3 | 25.5 | 1 | 9.5 | 3/8 | 0.40 | 14.0 | 18E32 |
| UAT80 | 10-12 | 3/8-1/2 | - | - | 45.0-63.0 | 33.3-46.6 | - | 5300 | 5600 | 186 | 7 5/16 | 1.25 | 2.8 | 28.0 | 1 3/32 | 9.5 | 3/8 | 0.48 | 16.0 | 18F22 |
| UAT90 | 10-12 | 3/8-1/2 | - | - | 50.0-85.0 | 37.0-62.9 | - | 5400 | 5700 | 192 | 7 9/16 | 1.45 | 3.2 | 29.0 | 1 5/32 | 12.7 | 1/2 | 0.53 | 18.6 | 18F52 |
| UAT100 | 12-14 | 1/2 | - | - | 70.0-130.0 | 51.8-96.2 | - | 4900 | 5200 | 199 | 7 27/32 | 1.70 | 3.7 | 31.5 | 1 1/4 | 12.7 | 1/2 | 0.55 | 19.3 | 18F82 |
| UAT130 | 14 | 9/16 | - | - | 110-150 | 81.4-111 | - | 4300 | 4500 | 217 | 8 35/64 | 2.30 | 5.06 | 34.0 | 1 11/32 | 12.7 | 1/2 | 0.70 | 24.6 | 18G12 |
| UAT150 | 16 | 5/8 | - | - | 140-210 | 103.6-155.4 | - | 3800 | 3900 | 240 | 9 29/64 | 2.90 | 6.4 | 38.0 | 1 1/2 | 19.0 | 3/4 | 0.70 | 24.6 | 18G42 |
| UAT180 | 16-18 | 5/8-3/4 | - | - | 160-250 | 118.4-185.0 | - | 3100 | 3300 | 264 | 10 25/64 | 3.7 | 8.1 | 52.0 | 2 3/64 | 19.0 | 3/4 | 0.70 | 24.6 | 18G72 |
| UAT200 | 18-20 | 3/4 | - | - | 200-400 | 148-296 | - | 2300 | 2400 | 279 | 10 63/654 | 5.80 | 12.76 | 49.5 | 1 31/32 | 19.0 | 3/4 | 1.00 | 35.2 | 18H32 |
| UAT50L | 6-8 | 1/4-5/16 | 7.0-15.5 | 5.2-11.5 | - | - | 4000 | 4300 | - | 162 | 6 3/8 | 0.92 | 2.0 | 24.5 | 31/32 | 9.5 | 3/8 | 0.25 | 8.8 | 18C12 |
| UAT50DL | 6-8 | 1/4-5/16 | 7.0-15.5 | 5.2-11.5 | - | - | 4000 | 4300 | - | 165 | 6 1/2 | 0.92 | 2.0 | 24.5 | 31/32 | 6.35 | 1/4 | 0.25 | 8.8 | 18B72 |
| UAT60L | 8 | 5/16 | 13.0-28.0 | 9.6-20.7 | - | - | 6000 | 6500 | - | 174 | 6 27/32 | 0.95 | 2.1 | 24.5 | 31/32 | 9.5 | 3/8 | 0.25 | 8.8 | 18D72 |
| UAT60L | 8 | 5/16 | 13.0-28.0 | 9.6-20.7 | - | - | 6000 | 6500 | - | 177 | 6 31/32 | 0.95 | 2.1 | 24.5 | 31/32 | 9.35 | 1/4 | 0.25 | 8.8 | 18D32 |
| UAT70L | 8-10 | 5/16-3/8 | 25.0-48.0 | 18.5-35.5 | - | - | 5300 | 5600 | - | 180 | 7 3/32 | 1.05 | 2.3 | 25.5 | 1 | 9.5 | 3/8 | 0.30 | 10.5 | 18E82 |
| UAT80L | 10-12 | 3/8-1/2 | 35.0-55.0 | 25.9-40.7 | - | - | 5000 | 5300 | - | 186 | 7 5/16 | 1.25 | 2.8 | 28.0 | 1 3/32 | 9.5 | 3/8 | 0.40 | 14.0 | 18F32 |
| UAT90L | 10-12 | 3/8-1/2 | 45.0-75.0 | 33.3-55.5 | - | - | 5100 | 5600 | - | 192 | 7 9/16 | 1.45 | 3.2 | 29.0 | 1 5/32 | 12.7 | 1/2 | 0.45 | 15.8 | 18F62 |
| UAT100L | 12 | 1/2 | 60.0-110.0 | 44.4-81.4 | - | - | 4800 | 5200 | - | 199 | 7 27/32 | 1.70 | 3.7 | 31.5 | 1 1/4 | 12.7 | 1/2 | 0.48 | 16.8 | 18F92 |
| UAT130L | 12-14 | 1/2-9/16 | 80.0-125.0 | 59.2-92.5 | - | - | 4100 | 4400 | - | 217 | 8 35/64 | 2.30 | 5.06 | 34.0 | 1 11/32 | 12.7 | 1/2 | 0.50 | 17.6 | 18G22 |
| UAT150L | 14-16 | 9/16-5/8 | 110.0-170.0 | 81.4-125.8 | - | - | 3700 | 3800 | - | 240 | 9 29/64 | 2.9 | 6.4 | 38.0 | 1 1/2 | 19.0 | 3/4 | 0.50 | 17.6 | 18G52 |
| UAT180L | 16 | 5/8 | 130.0-210.0 | 96.2-155.4 | - | - | 3000 | 3100 | - | 264 | 10 25/64 | 3.7 | 8.1 | 52.0 | 2 3/64 | 19.0 | 3/4 | 0.50 | 17.6 | 18G82 |
| UAT200L | 16-18 | 5/8-3/4 | 170.0-280.0 | 125.8-207.2 | - | - | 2200 | 2300 | - | 279 | 10 63/64 | 5.80 | 12.76 | 49.0 | 1 31/32 | 19.0 | 3/4 | 0.70 | 24.6 | 18H42 |
